China Best Pallet Rack Beams for Global Buyers?

Selecting the best pallet rack beams for global buyers requires more than comparing prices or steel thickness. A beam that looks strong may still fail under the wrong load, connector, or installation condition. Buyers should examine rated capacity, beam deflection, weld quality, coating thickness, and compatibility with existing uprights. They should also request test reports, material certificates, drawings, and clear installation instructions.

Details matter.

Experienced warehouse engineers inspect the beam profile and connector before approving a purchase. They also check pallet dimensions, forklift clearance, seismic exposure, and future storage changes. Standards such as ANSI MH16.1 and EN 15512 can support a reliable evaluation, but compliance claims should be verified with current documents. A supplier’s website is not enough evidence.

John Nofsinger, a recognized voice in the pallet racking industry, has said, “A rack is only as safe as its weakest connection.” This practical warning deserves attention. The beam may carry the stated load, yet a damaged connector or uneven frame can change the risk completely. Global buyers should compare factories by engineering capability, quality control, traceability, and after-sales support, not by catalog photos alone.

There is no single best beam for every warehouse. That assumption is easy, but incomplete. Some buyers may over-specify steel and waste budget. Others may focus too narrowly on initial cost. A careful choice balances capacity, durability, local requirements, shipping efficiency, and long-term maintenance. This article examines those factors and helps buyers identify pallet rack beams that perform reliably in real storage environments.

China Best Pallet Rack Beams for Global Buyers?
Table of Contents [Hide]
1 Pallet Rack Beams: Types, Functions, and Structural Features
2 How to Assess Beam Capacity, Dimensions, and Compatibility
3 China’s Pallet Rack Beam Manufacturing and Quality Standards
4 How Global Buyers Compare Suppliers, Prices, and Custom Options
5 Ordering, Inspection, Shipping, and Installation of Rack Beams

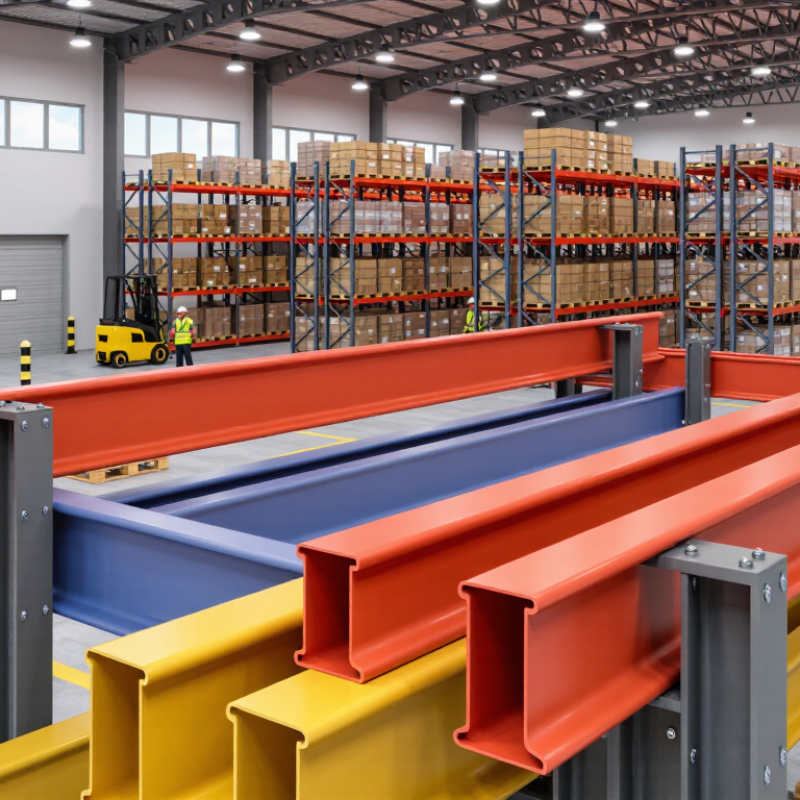

Pallet Rack Beams: Types, Functions, and Structural Features

Pallet Rack Beams: Types, Functions, and Structural Features

Pallet rack beams support loaded pallets across upright frames. Their design affects capacity, stability, and warehouse safety. Step beams use formed lips to hold decking or pallet supports. Box beams provide a closed profile and strong resistance to bending. Structural beams use heavier steel sections for demanding loads. Roll-formed beams are light, efficient, and widely used for standard storage. Welded beams suit higher capacities, but their connections require careful inspection. Beam connectors must fit the upright slots correctly. A loose connection can shift under impact.

Beam performance depends on steel thickness, profile depth, span, and connection design. Longer spans usually create greater deflection. Load ratings should reflect evenly distributed pallets, not one concentrated load. Check the manufacturer’s tested data and obtain a qualified engineering review for unusual layouts. Upright compatibility matters too. Even a strong beam can fail in a mismatched frame. Powder coating or galvanized finishes may help resist warehouse moisture, but surface protection does not replace inspection. Look for dents, cracked welds, twisted sections, or missing safety pins. In practice, beam selection is rarely perfect. A lower-cost option may reduce flexibility later. A heavier beam may waste storage space and budget. Measure pallet dimensions, forklift clearance, and actual load weight before ordering from China or another supplier. Small measurement errors can become expensive installation problems.

How to Assess Beam Capacity, Dimensions, and Compatibility

China Best Pallet Rack Beams for Global Buyers?

Beam selection starts with capacity, not price. A beam rating applies to a specific pair, span, load distribution, and deflection limit. It does not automatically validate the entire rack. ANSI MH16.1 requires engineered evaluation of beams, frames, connectors, and anchorage. Ask for a tested load chart, steel grade, weld details, and safety factor. The 2024 MHI Annual Industry Report found that 55% of surveyed supply-chain leaders planned to increase technology investment. Higher-density storage is growing, but denser racks also punish weak assumptions.

Measure beam length between upright frames, not the outside width. Record beam height, profile depth, connector type, and hole pitch. A 2.7-meter beam cannot replace a 2.4-meter beam without recalculating capacity. Check pallet width, overhang, fork clearance, and the number of pallets per level. Confirm whether the quoted capacity assumes evenly distributed loads. One concentrated pallet may change the result. Small details matter.

Compatibility deserves a physical check. Match the beam connector, locking pin, frame depth, and upright pattern. Request installation instructions and corrosion-test information for humid warehouses. OSHA 29 CFR 1910.176(b) requires stored materials to remain secure and stable, while local codes may add seismic or anchorage rules. Do not trust a product photo. I have seen apparently identical connectors fit loosely. That mistake is expensive. Independent inspection is wise, especially when drawings are incomplete.

China Best Pallet Rack Beams for Global Buyers? - How to Assess Beam Capacity, Dimensions, and Compatibility

Assessment Dimension Typical Specification or Range Why It Matters Buyer Verification Method Compatibility Considerations
Beam Length 1,800–3,600 mm is common; longer spans are available subject to structural design. Longer beams generally experience greater bending and deflection under the same load. Measure the clear distance between upright frames and confirm the required pallet positions per level. The beam length must match the frame spacing and the supplier’s connector geometry.
Beam Profile Depth Approximately 80–160 mm for many selective pallet-rack applications. Greater section depth usually improves bending resistance and reduces deflection. Record the overall section depth, flange width, lip shape, and steel thickness from a sample beam or drawing. A beam with similar outside dimensions may still be incompatible if the connector or hole pattern differs.
Beam Face Width Typically 40–70 mm for roll-formed pallet-rack beams. Influences connector engagement, decking support, and the available bearing surface for pallets. Measure the front-to-back beam face and check whether pallet support bars or decking sit correctly. The beam face must not obstruct pallet entry or interfere with upright bracing.
Steel Thickness Common roll-formed beam thicknesses are approximately 1.5–2.5 mm; heavier sections may be thicker. Thickness affects local buckling, connector strength, durability, and calculated load capacity. Confirm the nominal thickness from technical drawings and verify samples with calibrated measuring equipment. Do not use thickness alone as proof of capacity; section shape, steel grade, span, and connection design are also critical.
Steel Grade Structural cold-formed steels commonly use minimum yield strengths around 235–355 MPa, depending on the design specification. Higher yield strength can increase resistance, but it does not automatically produce a higher permissible rack load. Request the material certificate and confirm the grade, heat number, and applicable test standard. The declared grade should correspond with the structural calculation and the destination-market requirements.
Beam Connection Common systems use welded or bolted connectors with multiple locking fingers, hooks, or pins. The connection transfers shear and prevents accidental beam disengagement. Check connector dimensions, hook spacing, locking pin position, welds, and engagement depth. Do not assume beams are interchangeable solely because the length and color are similar.
Load Type Usually uniformly distributed load per beam pair; point loads require separate assessment. A concentrated load from pallet feet or narrow supports can produce higher local stresses than an evenly distributed load. Provide pallet weight, pallet dimensions, support locations, and load distribution details. Pallets, wire decking, timber boards, and support bars may create different loading conditions.
Deflection Limit Many rack designs use a serviceability limit near span/200, but the project engineer and governing standard control the final value. Excessive deflection can affect pallet stability, load placement, and operator confidence even when strength is adequate. Request calculated deflection at the specified span and working load, not only an ultimate capacity figure. The same beam may have different allowable loads at different spans because deflection increases significantly with span.
Upright Compatibility Upright hole pitch commonly ranges from about 50 to 76 mm, but patterns vary by system. Hole pitch and upright section determine beam elevation, connector fit, and load-path behavior. Compare upright hole pitch, frame depth, connector height, and locking arrangement using drawings or physical samples. A beam should be treated as system-specific unless compatibility has been formally verified.
Surface Finish Powder coating, baked enamel, or galvanized finishes are common; finish thickness varies by process. The finish protects against corrosion and affects service life in humid, cold, or chemically aggressive environments. Specify coating type, color reference, corrosion environment, surface preparation, and inspection requirements. Damaged coating at connectors or beam ends should be repaired according to the maintenance procedure.
Applicable Standard Common references include EN 15512, FEM 10.2.08, RMI MH16.1, and AS 4084, depending on the market. Standards define design assumptions, testing, safety factors, tolerances, and documentation expectations. Identify the destination country and require calculations, drawings, and test evidence to the selected standard. One standard’s load label should not automatically be transferred to a different regulatory market.

Illustrative Beam Capacity Comparison

The following values are indicative engineering ranges for a uniformly distributed load on one beam pair at approximately 2,700 mm span. Actual capacity must be confirmed by project-specific structural calculations, connection checks, deflection limits, and the selected design standard.

Nominal Beam Profile Typical Section Depth Indicative UDL Range per Beam Pair Typical Application Required Confirmation
Light-duty roll-formed beam Approximately 80–90 mm About 1,000–2,000 kg Light pallets, cartons, and lower-level storage Section properties, steel grade, connector capacity, and deflection calculation
Medium-duty roll-formed beam Approximately 100–110 mm About 1,500–3,000 kg General selective pallet storage Span-specific capacity label and verification of pallet support conditions
Heavy-duty roll-formed beam Approximately 120–140 mm About 2,500–4,500 kg High-density pallets and heavier industrial goods Full frame-and-beam system calculation, including upright and base-plate checks
Built-up or structural heavy beam Approximately 140–180 mm or project-specific About 4,000–6,000 kg or more, subject to design Very heavy loads, special pallets, and engineered storage systems Stamped engineering documents, connection testing, and project approval
Important: A pallet-rack beam’s safe working load cannot be determined from beam size alone. Confirm the complete system, including beam span, load distribution, upright frames, connectors, bracing, floor conditions, seismic requirements, and the regulations applicable in the installation country.

China’s Pallet Rack Beam Manufacturing and Quality Standards

China Best Pallet Rack Beams for Global Buyers?

China’s pallet rack beam manufacturing is increasingly measured by documented engineering, not appearance alone. EN 15512 covers adjustable pallet racking design principles, while EN 15635 addresses safe use and inspection. In North American projects, ANSI/RMI MH16.1 is also commonly referenced. These frameworks examine load capacity, beam deflection, connection safety, and structural stability.

Reliable factories control steel thickness, yield strength, welding quality, and coating coverage. Each batch should carry traceable test records, production numbers, and inspection results. MHI’s 2024 Annual Industry Report states that 55% of supply chain leaders planned to increase technology investment. This pressure also affects storage equipment. Buyers now expect clearer digital records and faster quality verification. Still, a polished certificate cannot repair poor sampling. That weakness deserves attention.

Tips: Request mill certificates, load tables, weld inspection records, and independent testing. Check whether stated capacities match the actual beam length, connector type, and loading pattern. Confirm corrosion protection through coating-thickness tests. Ask for installation guidance based on EN 15635 or ANSI/RMI practice. A drawing can still be wrong. Review revisions carefully, especially hole spacing and connector details. Inspections should continue after delivery, because forklifts, uneven floors, and repeated impacts can change rack performance.

China Pallet Rack Beam Manufacturing: Structural Steel Yield Strength References

The chart compares nominal minimum yield-strength values for structural steel grades commonly referenced in pallet-rack manufacturing and international procurement. Q235 and Q355 are specified in China’s GB/T 1591 standard, S235 and S355 are covered by EN 10025-2, while ASTM A36 and ASTM A572 Grade 50 are widely used American structural-steel references. Actual rack-beam capacity also depends on section geometry, thickness, welding, perforation, beam-to-upright connections, testing, and design calculations.

Reference standards: GB/T 1591, EN 10025-2, and ASTM A36/A572.

How Global Buyers Compare Suppliers, Prices, and Custom Options

China Best Pallet Rack Beams for Global Buyers?

Global buyers compare pallet rack beams through evidence, not attractive catalog photos. The MHI 2024 Annual Industry Report identifies labor shortages, automation, and digital supply chains as major material-handling pressures. Therefore, suppliers should provide clear load tables, steel grades, weld details, and production inspection records. Ask for proof.

Price comparisons become meaningful only after standardizing specifications. Record beam length, pallet load, deflection limit, connector type, coating, packaging, and delivery terms. World Steel Association’s World Steel in Figures 2024 reports 1.892 billion tonnes of crude steel production in 2023. Steel availability affects quotations, but it does not explain every price difference. Very low prices may reflect thinner sections, weaker coatings, or incomplete testing. Details matter. Buyers should request sample calculations and batch traceability, then compare equivalent designs.

Custom options can include beam lengths, profiles, safety pins, colors, and corrosion-resistant finishes. However, customization needs engineering control. EN 15512 covers adjustable pallet racking design principles, while EN 15635 addresses application and maintenance. Buyers should check whether the supplier designs against relevant regional requirements, rather than simply copying a drawing.

A practical factory audit should examine measuring tools, weld consistency, coating thickness, and finished-beam labeling. The weak point is often our own comparison sheet. If it ignores installation conditions, forklift impact, or future load changes, a cheaper beam may become an expensive correction.

Ordering, Inspection, Shipping, and Installation of Rack Beams

China Best Pallet Rack Beams for Global Buyers?

Ordering, Inspection, Shipping, and Installation of Rack Beams

Ordering rack beams from China starts with accurate warehouse data. Provide beam length, pallet weight, bay width, upright type, and required loading levels. Ask for engineering drawings and rated capacity tables. Vague measurements create expensive corrections later. In practical purchasing, I prefer a small trial order before full production. It exposes design mistakes early. Confirm steel grade, coating method, weld details, and production tolerance in writing.

Inspection should combine documents with physical checks. Measure beam length, connector position, hole spacing, and profile thickness. Look for straight surfaces, complete welds, clean corners, and stable locking pins. A calibrated load test may be appropriate for critical projects. Photographs alone are not enough. An independent inspector can compare samples against approved drawings. Still, inspection is not perfect. A hidden packaging defect may appear only after unloading.

Use strong corner protection and separated bundles during shipping. Labels should show quantity, beam size, project reference, and lifting points. Confirm container loading plans before sealing. Moisture control matters during long ocean transport. After arrival, count every bundle and inspect for bending or coating damage. Installation requires level floors, correct anchors, approved torque values, and trained workers. Never mix unverified components. Check each beam connection before loading pallets, then document the installed rows with clear photographs.
