An Innovative and Versatile Storage Solution
The universal sheet rack is an ideal solution for companies with diverse storage needs. Its innovative drawer system ensures easier access to materials while maximizing overall storage capacity. Universal drawers can be installed on roll-out sheet racks, sheet towers and our hybrid sheet rack, providing exceptional flexibility.
Flexible and Adjustable Storage

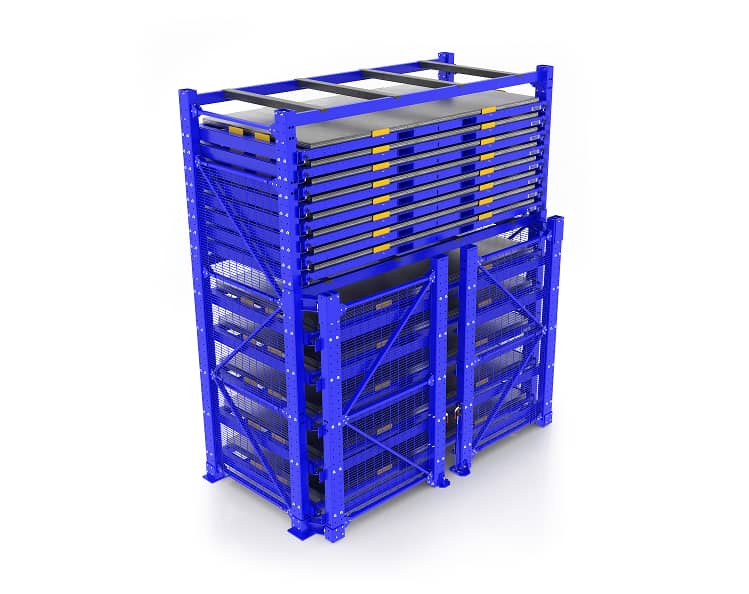

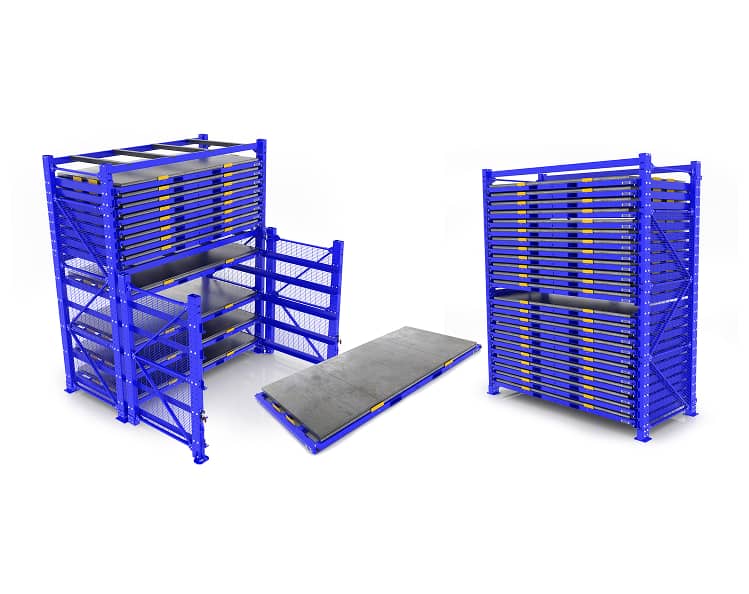

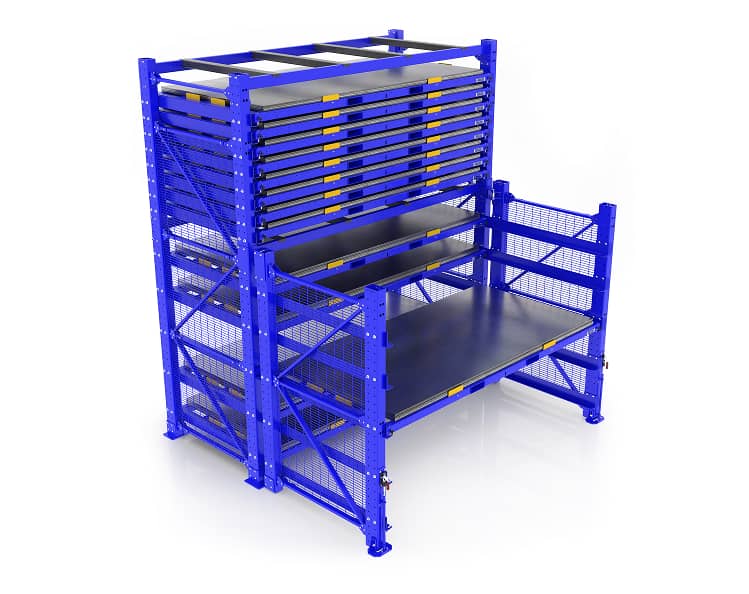

With the universal rack, you can combine fixed and mobile levels, creating a storage system that adapts perfectly to your needs while optimizing available space. This hybrid design also integrates a depalletizing solution, simplifying the unpacking of pallets and streamlining operations.
Built to evolve alongside your business, the universal sheet rack offers a scalable storage solution capable of meeting a wide range of demands.
Features of the Universal Roll Out Sheet Rack
- Modular & Reconfigurable Design: Bolted rails allow for quick and easy repositioning of drawers as your storage needs evolve.
- High-Density Storage: Maximize vertical space with as little as 3 inches of clearance between drawers, adjustable in 3″ increments.
- Rear Loading Capability: Standard rear loading is built into both the Sheet Rack and Hybrid Sheet Rack models for added flexibility in material handling.
- Full Extension Drawers: Each drawer opens fully, providing complete access to stored materials without obstruction.
- Integrated Safety Mechanisms: Every drawer features a lock-in/lock-out system to ensure secure operation during loading and unloading.

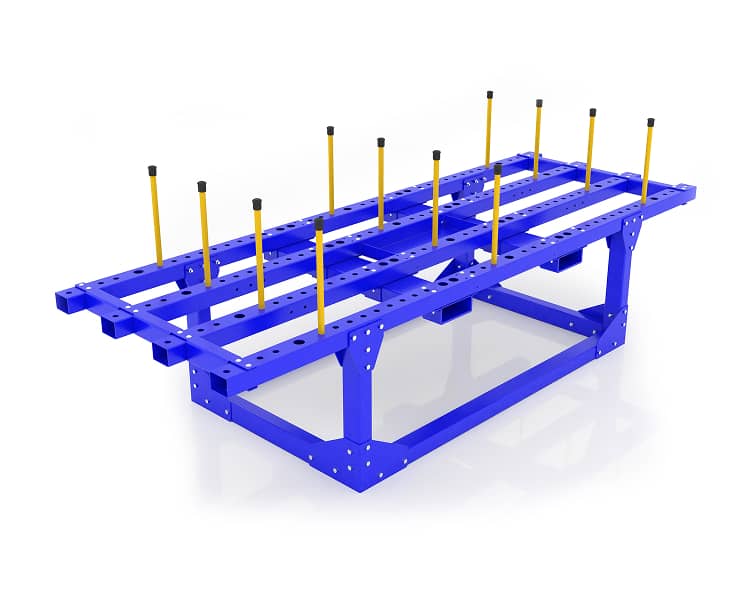

- Depalletizer Compatibility: Seamlessly integrates with our Depalletizer system for safe and efficient transfer of sheet materials.
- Durable Finish: Protected with a high-quality, industrial-grade powder-coat paint for long-lasting performance in demanding environments.
SPECIFICATIONS

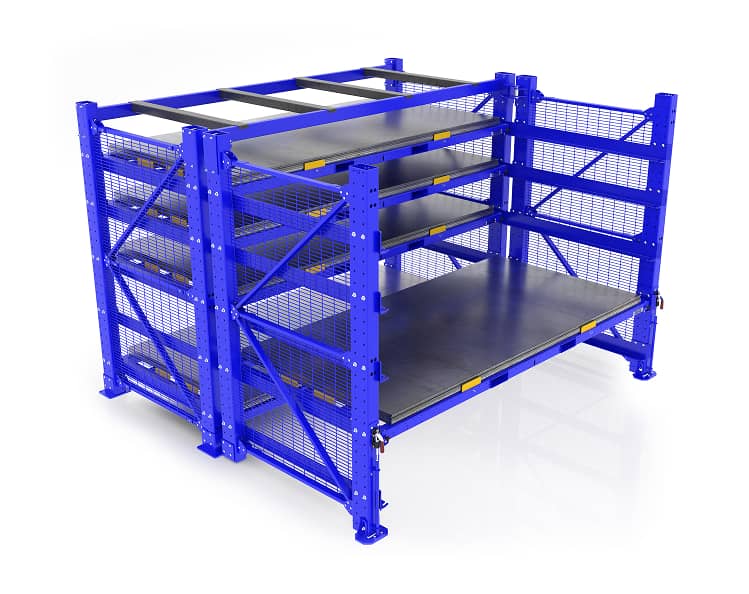

- Available Models: Universal Sheet Rack, Hybrid Sheet Rack and Sheet Tower
- Available Heights: 8 ft, 12 ft, 14 ft, 15 ft, 16 ft
- Standard Drawer Sizes: 96×48, 120×48, 120×60, 144×60, 144×72
- Drawer Load Capacity: Up to 5,000 lb UDL (uniformly distributed load)
- Maximum Number of Drawers per Rack: Up to 13 drawers per rack, with additional cassettes above 96 inches

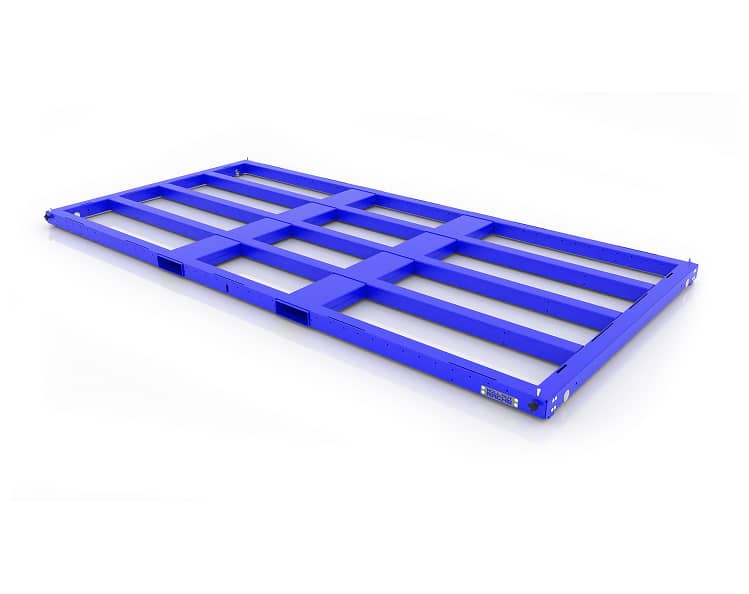

- Cassette Modularity: Cassettes can be converted into drawers by adding a bearing kit
- Adjustable Stops: Each cassette comes with 6 removable stoppers, expandable to 8
- Laser Cutting Compatibility: Stoppers can be removed temporarily to slide sheets directly into the laser cutting machine
- Cassette Identification: Pre-drilled holes allow for identification plates with rivets

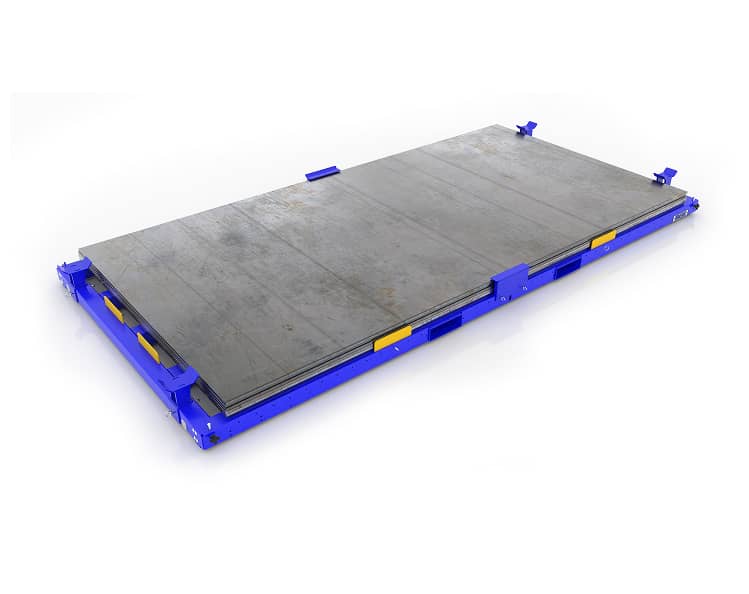

- Stackability: Cassettes can be stacked at full capacity using the stacking kit, eliminating wooden pallets
- Structural Stability: Door Locks are designed to keep vertical posts parallel when drawers are extended
OPTIONS
- Hinged frames
- Double hinged frames
- Drawer and fixed levels combined
- Removable stoppers for drawers
- Cradle for cylinders and round parts
- Solid top for drawers
- Wire mesh top for drawers
- UHMW protective lining for fragile parts or stainless steel.
