Top 10 Types of Pallet Shelving for Warehouses

Choosing the right pallet shelving system can reshape warehouse productivity, safety, and long-term operating costs. The wrong choice can create blocked aisles, damaged goods, and wasted vertical space.

This guide examines the top 10 types of pallet shelving used in modern warehouses. Each system serves different storage conditions, loading patterns, and inventory requirements. Selective pallet racking supports fast access to many stock-keeping units. Drive-in systems increase density, while push-back and pallet flow designs improve storage movement. Cantilever shelving suits long, irregular products. Mobile, double-deep, and automated options may offer greater capacity, but they also require careful planning and trained operation.

Details matter. A 10-meter aisle may look efficient on paper, yet a forklift might struggle to turn safely. Beam height, pallet weight, ceiling clearance, floor quality, and fire protection requirements must be checked before installation. Operators should also consider turnover rates, product dimensions, expansion plans, and inspection routines. Experienced warehouse teams usually test a layout with real pallets before approving a full rollout.

No single solution fits every facility. That point is easy to overlook. A high-density design may reduce accessibility, while a flexible layout may consume more floor area. Product damage, changing demand, and imperfect inventory data can weaken an otherwise polished plan. Reliable decisions come from site measurements, manufacturer specifications, qualified installation, and regular safety reviews. With those foundations, pallet shelving becomes more than a storage fixture; it becomes a practical framework for safer workflows, clearer inventory control, and sustainable warehouse growth.

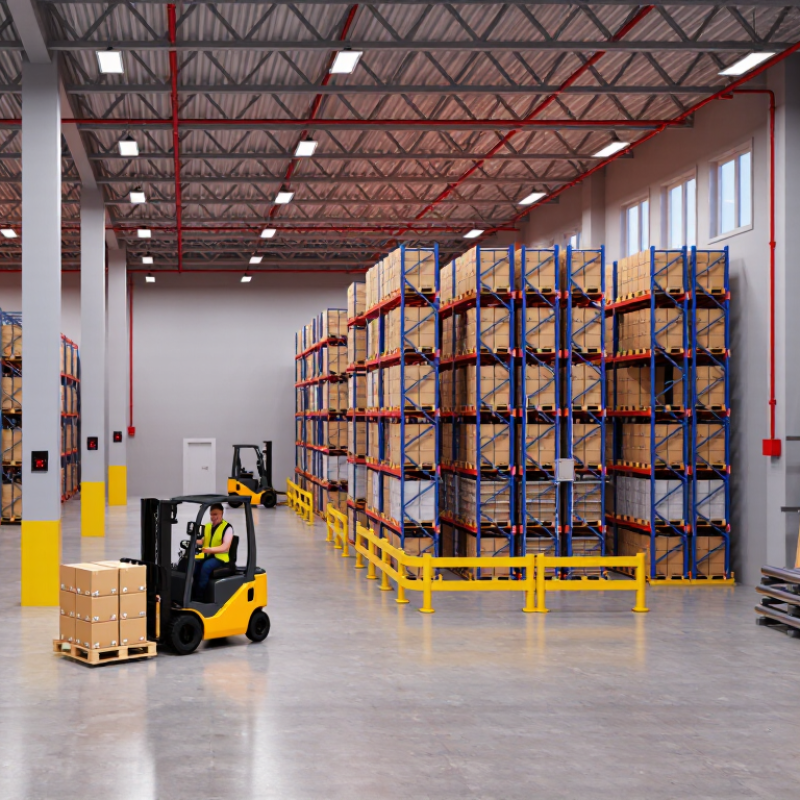

Top 10 Types of Pallet Shelving for Warehouses
Table of Contents [Hide]
1 Pallet Shelving: Definition, Purpose, and Warehouse Applications
2 The Ten Main Types of Pallet Shelving Systems
3 Structural Features and Operating Principles of Each Shelving Type
4 How to Compare Pallet Shelving by Capacity, Access, and Space Efficiency
5 Selection, Installation, and Safety Criteria for Warehouse Shelving

Pallet Shelving: Definition, Purpose, and Warehouse Applications

Pallet Shelving: Definition, Purpose, and Warehouse Applications

Pallet shelving is a steel storage system designed to hold goods on pallets. In many warehouses, it is also called pallet racking. Upright frames, horizontal beams, and decking create stable storage levels. Each bay supports loaded pallets above the floor. The structure turns unused vertical space into organized inventory capacity.

Its main purpose is controlled access, safe stacking, and faster stock movement. Selective pallet shelving gives workers direct access to every pallet. Drive-in systems increase density but reduce picking flexibility. Push-back and pallet-flow designs support higher throughput in suitable operations.

Cantilever shelving serves long materials, while mobile systems can reduce aisle space. The best choice depends on pallet size, load weight, turnover, equipment, and building height.

Real warehouse applications reveal practical limits.

A cold-storage facility may need corrosion-resistant components and wider equipment clearances. A retail distribution area often benefits from selective access and clear location labels. High-volume food storage may use pallet flow for date-sensitive stock.

I have seen layouts that looked efficient on paper but slowed picking because aisles were too narrow. That mistake is easy to repeat. Engineers should verify floor capacity, beam deflection, sprinkler clearance, and impact protection before installation.

Workers also need visible load information and regular inspections. A small adjustment can prevent a costly disruption. Pallet shelving is not merely a storage frame. It is part of the warehouse’s daily operating system.

The Ten Main Types of Pallet Shelving Systems

The ten main types of pallet shelving systems serve different warehouse patterns. Selective pallet racking gives direct access to every load. Drive-in racking stores dense, similar products with fewer aisles. Drive-through racking supports loading from both ends. Push-back racking uses nested pallets on inclined rails. Pallet flow racking moves stock by gravity. Double-deep racking increases density but needs suitable handling equipment.

Cantilever racking suits long materials, not standard boxed pallets. Mobile racking runs on movable bases and reduces unused aisle space. Automated storage and retrieval systems improve control in high-volume operations. Mezzanine-supported pallet shelving adds storage above working areas. Each system has trade-offs. Density can reduce speed. Automation can increase maintenance demands. Real warehouse conditions matter more than a catalog description.

Tips: Measure clear height, aisle width, pallet weight, and forklift turning space before choosing. Check floor capacity and rack protection points. Separate fast-moving goods from slow-moving stock. Label every location clearly, then inspect frames, beams, and anchors regularly. A practical trial with representative pallets can reveal problems that drawings miss. Do not assume the most compact layout is the best one. Human traffic, damaged pallets, and changing inventory may challenge the original plan.

Structural Features and Operating Principles of Each Shelving Type

Top 10 Types of Pallet Shelving for Warehouses

Selective pallet shelving uses upright frames and horizontal beams, giving each pallet direct forklift access.
Drive-in shelving uses rear rails and supports pallets in deep lanes, following a last-in, first-out principle.
Drive-through shelving has access from both ends, supporting first-in, first-out rotation when loading and unloading are controlled.
Push-back shelving uses nested carts on inclined rails, so new pallets push older ones backward.
Pallet flow shelving uses rollers and gravity, moving loaded pallets toward the picking face.
Double-deep shelving stores one pallet behind another, improving density but requiring suitable handling equipment.
Very-narrow-aisle shelving uses tall frames and guided trucks, reducing aisle width while increasing height.
Mobile shelving moves along floor rails, opening only the required aisle.
Cantilever shelving uses vertical columns and projecting arms for long or irregular loads.
Automated pallet storage combines steel frames, conveyors, and lifting machines for programmed placement and retrieval.

Operating results depend on more than capacity figures. In warehouse reviews, I check beam deflection, frame anchoring, aisle clearance, pallet condition, and impact marks. A well-designed system can still perform poorly when operators mix pallet sizes or ignore load-position rules.

That is the part people often underestimate. Storage density may improve, yet access speed can decline. Regular inspections and clear operating signs help reveal these trade-offs before they become expensive problems.

Tips: Match each system with inventory rotation and handling equipment. Keep heavier pallets on lower levels. Never exceed posted loads. Recheck clearances after layout changes. Even small forklift impacts deserve attention.

How to Compare Pallet Shelving by Capacity, Access, and Space Efficiency

Top 10 Types of Pallet Shelving for Warehouses

How to Compare Pallet Shelving by Capacity, Access, and Space Efficiency

Selective pallet racking offers direct access to every pallet, but it consumes more aisles. Double-deep systems improve density while reducing immediate access. Drive-in racking stores many identical pallets and suits slower-moving inventory. Push-back racking adds depth without requiring a forklift to enter each lane. Pallet-flow racking supports first-in, first-out rotation through inclined rollers. Mobile racking saves floor space, although movement can slow picking. Cantilever racking handles long loads, while shuttle, automated storage, and high-bay systems increase density with higher technical demands. MHI’s 2024 Annual Industry Report found that 83% of respondents expect greater technology adoption within five years, but automation should follow workflow analysis, not fashion.

Capacity is more than a quoted load rating. Check beam capacity, upright strength, pallet dimensions, load distribution, and floor limits. OSHA storage guidance requires stable arrangements that do not create hazards. The 2024 Global Industrial and Logistics Trends report from a leading property consultancy also notes continuing pressure on warehouse space, making vertical utilization increasingly valuable. Yet maximum height can reduce access and raise equipment costs. Some choices disappoint. I have seen dense layouts create hidden congestion near receiving doors.

Tips: Map travel paths before selecting a system. Compare pallets accessed per hour, not only pallets stored. Leave practical clearance for damaged loads, inspection, and imperfect forklift turns. Review the design with a qualified engineer and local safety requirements.

Selection, Installation, and Safety Criteria for Warehouse Shelving

Choosing among selective, drive-in, double-deep, pallet-flow, push-back, cantilever, and automated storage systems starts with product behavior. Pallet weight, dimensions, turnover, and forklift reach matter more than fashionable layouts. Selective shelving offers direct access, while drive-in designs increase density but reduce selectivity. Cold rooms, fragile loads, and irregular pallets require different decisions.

Installation must follow verified load calculations and the rack manufacturer’s approved configuration. ANSI MH16.1 addresses the design of industrial steel storage racks. OSHA 1910.176(b) requires stored materials to remain stable and protected from collapse. Floor capacity deserves attention. Concrete may look sound, yet cracks, joints, or uneven settlement can distort uprights. Anchor every frame as specified, protect end posts, and keep aisles wide enough for the actual turning radius.

Safety performance needs measurement after installation. The U.S. Bureau of Labor Statistics reported 4.8 recordable cases per 100 full-time workers in warehousing and storage during 2023. That figure is not a rack-failure rate, but it signals real exposure. MHI’s 2024 Annual Industry Report also describes accelerating investment in automation, which changes traffic patterns and inspection needs. A practical inspection should check bent frames, missing beams, loose anchors, damaged pallets, and unreadable load signs. Photos help. Human judgment still misses things. Reassess the design after seasonal peaks, forklift changes, or repeated impact.
